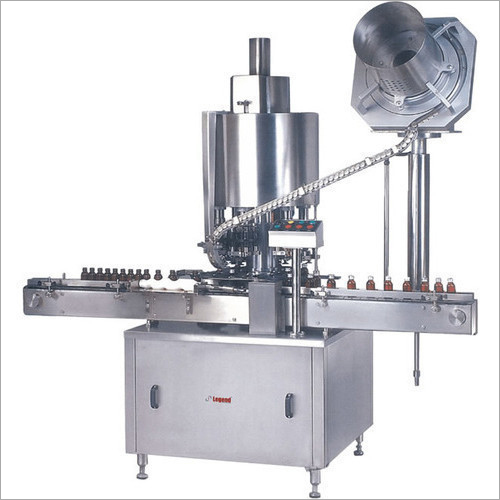

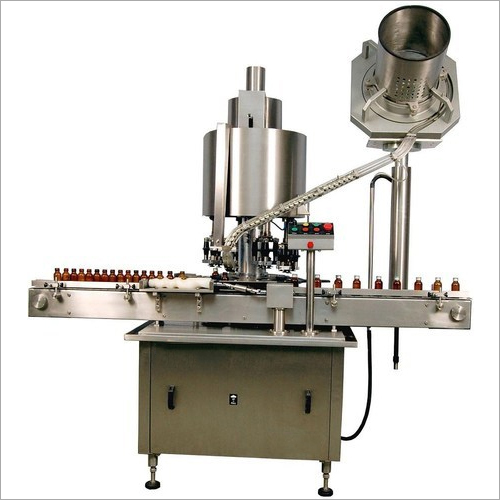

Screw Cap Sealing Machine

Product Description

Bottle Diameter	22 mm to 100 mm
Phase	Three Phase
Voltage	440 V
Ropp Cap	18 and 28 mm Diameter
Height of Conveyor	Adjustable from 800 to 850 mm
Height	55 mm to 210 mm max
Frequency	50 Hz

We are one of the leading manufacturers, suppliers and exporters of high quality automatic screw cap sealing machine.

Description

• Automatic Screw Capping Machine is versatile, self-supported on stainless steel leg with height adjustable adjustment system. The machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are providing to facilitate the servicing of machine.

Operation

• The feed container moving on conveyor belt are feed into an in-feed star wheel, bringing the container below the sealing head in the subsequent indexing part, mean while the rotating head pickup a cap from the cap star wheel which is receiving from delivery chute of cap filling bowl, where the body and the neck of the container are positioned below the rotating head, where the sealing head is performing perfect operation of sealing, rotating head is design to seal container according to pre-set torque.

Technical Specification

Model No.	SSE- 60	SSE-100	SSE-150	SSE-200
Direction	Left To Right.
Production Rate BPM	20 To 40	40 To 80	80-100	150-200
No of Sealing Head	1	4	6	8
Power Requirement	440 Volts, 3 Phase (4 wire System) 50 Hz.
Height of Conveyor	adjustable from 800 to 850 mm
Bottle Diameter	22 mm to 100 mm max. adjustable as per client requirement
Height	55 mm to 210 mm max. adjustable as per client requirement
ROPP cap	18 & 28 mm diameter.(with help of change parts)
