    Bottle Filling

    Bottle Filling

    800000 INR/Piece

    Product Details:

    • Product Type bottle filling machine
    • Computerized No
    • Automatic Grade Automatic
    • Control System PLC Control
    • Drive Type Electric
    • Voltage 240
    • Weight (kg) 1.5 Tonne
    • Supply Ability : 1 Piece Per Day
    • Click to view more
    X

    Price And Quantity

    • 800000 INR/Piece
    • 1 Piece

    Product Specifications

    • 240
    • PLC Control
    • Automatic
    • 40 bottle per min
    • High Performance, Simple Control
    • bottle filling machine
    • No
    • 1 year
    • Electric
    • 1.5 Tonne

    Trade Information

    • Ahmedabad
    • Letter of Credit (L/C), Cheque, Cash in Advance (CID), Cash Advance (CA)
    • 1 Piece Per Day
    • 1 Months
    • bottle packing
    • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
    • All India

    Product Description

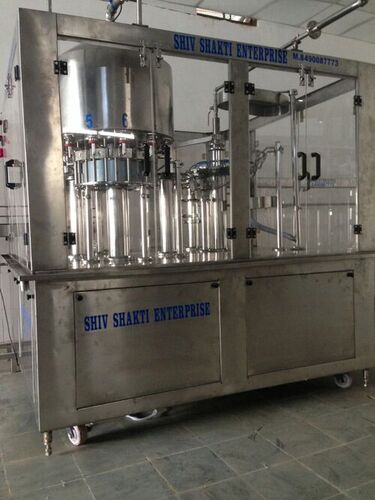

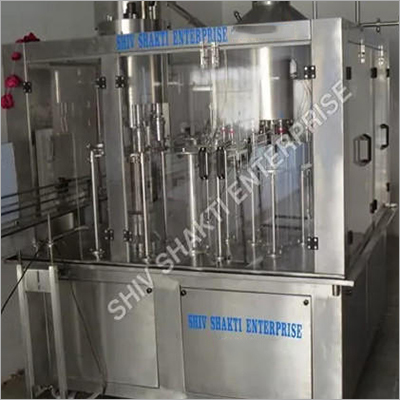

    TECHNICAL SPECIFICATION FOR 40 BPM

    RINSING, FILLING & CAPPING



    Model Number

    S.S.E.W-1500

    Production capacity

    2400 Bottles / Hour

    Production Capacity for 1.5 Liters

    1800 Bottles / Hour

    Filling Capacity

    200 ml to 2,000 ml

    Neck Description

    Standard for full range

    Voltage

    440 V / 3 Ph / 50Hz

    Total Power

    5 KW

    Unit Dimensions (L x W x H)

    25(with conveyor) x 5 x 10

    Air pressure

    2 hp

    Wash Stages

    1 Stage

    Rinsing & Washing Heads

    10

    Filling Heads

    10

    Capping Heads

    5

    Drive

    Delta Make

    Structure

    Mono block

    Bottle Type

    PET Bottles only

    (NO GLASS)

    Beverage contact parts

    S.S. 304

    Input Conveyor size

    5 Ft Long

    Conveyor Speed

    Adjustable

    Output Conveyor size

    14 ft Long total length

    Motor

    Rotomotive

    Our Machine Strength

    Combine Motor & gear, no need air compressor, perfect moving, smooth working. We are giving 10 head rinsing,10 head filling, 5 head capping 16mm Machine base plate, Magnetic Capping, Anti rotate Bottle .
